| Brand Name : | Huaray |
| Certification : | FCC, CE |
| Model Number : | GPS Antenna |
| Price : | Negotiable |
| Delivery Time : | In two or three days |
| Payment Terms : | T/T, L/C, Western Union, MoneyGram, Paypal |
| Supply Ability : | 10,000pcs per month |

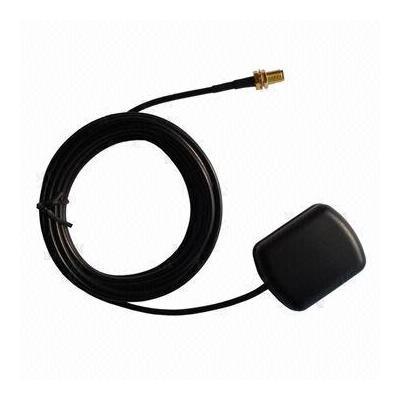

Key Specifications/Special Features:
Dielectric antenna:
Center frequency: 1575.42 ± 3MHz
VSWR (in BW): 1.5:1
Bandwidth: ±5MHz
Impedance: 50Ω
Polarization type: RHCP
LNA/filter:
LNA gain (without cable): 28 ± 2dB (typical)
Noise figure: 1.5dB
DC voltages: 2.2 to 5V
DC current: 5 to 15mA
Mechanical:
Dimensions: 48 x 38 x 14mm
Mounting: magnetic/adhesive
Housing: black
Packaging dimensions: 120 x 95 x 20mm
Optional cable: RG174, 3m or others
Optional connectors: SMA/MCX/SMB/BNC or others
Environmental:
Working temperatures: -40 to 85°C
Humidity: 55 to 75% RH
Waterproof grade: IP67
